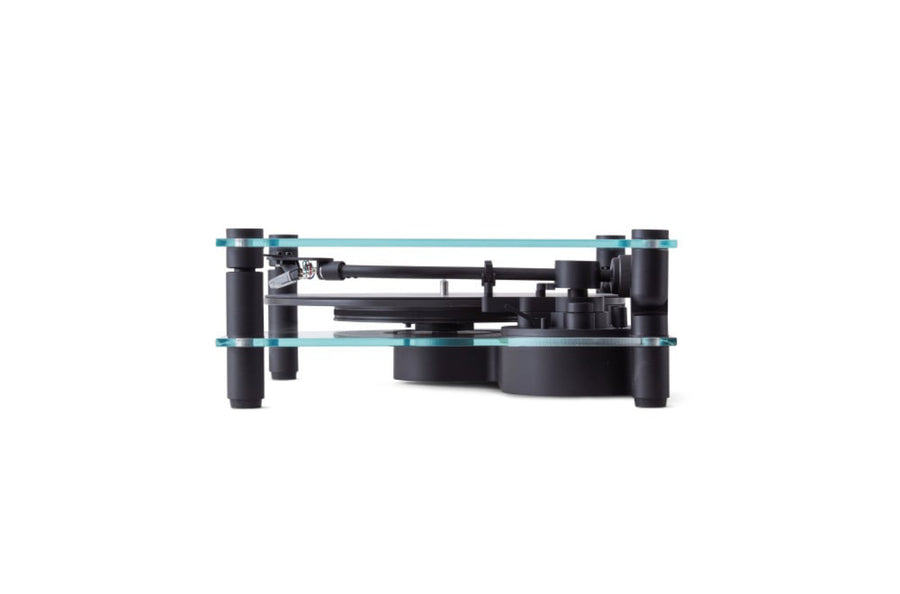

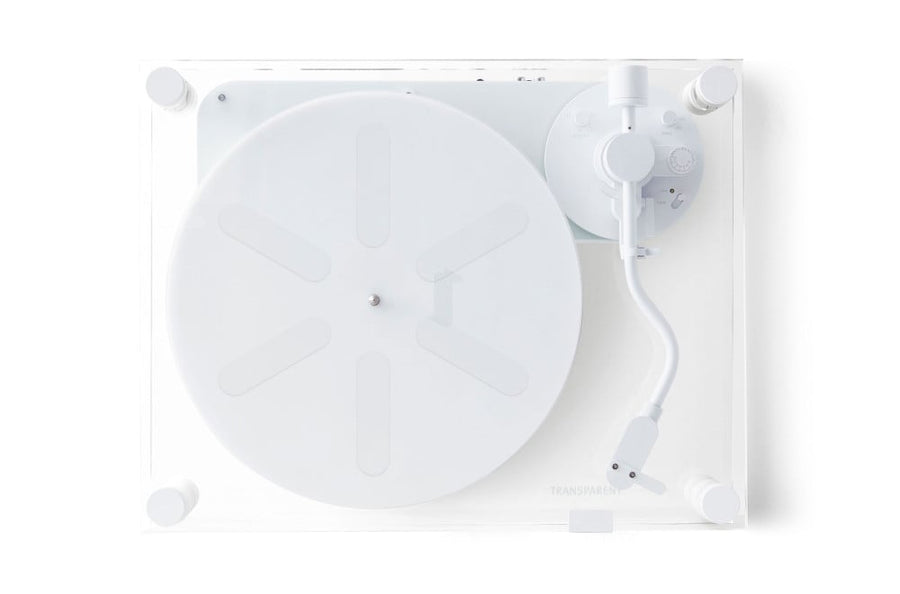

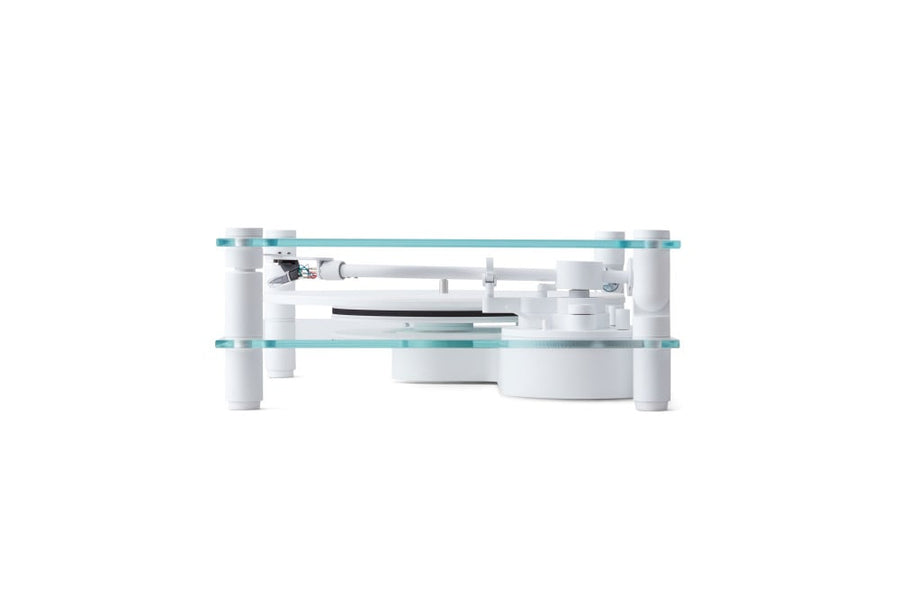

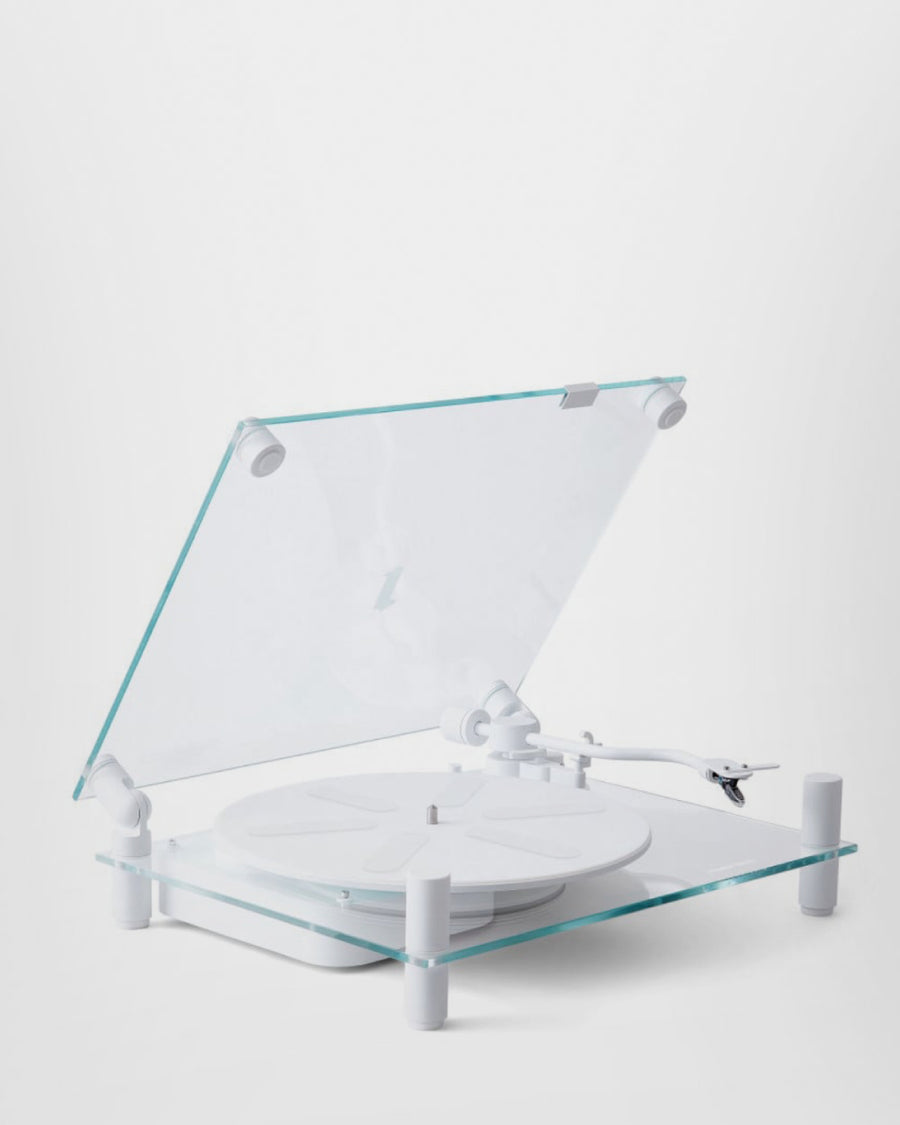

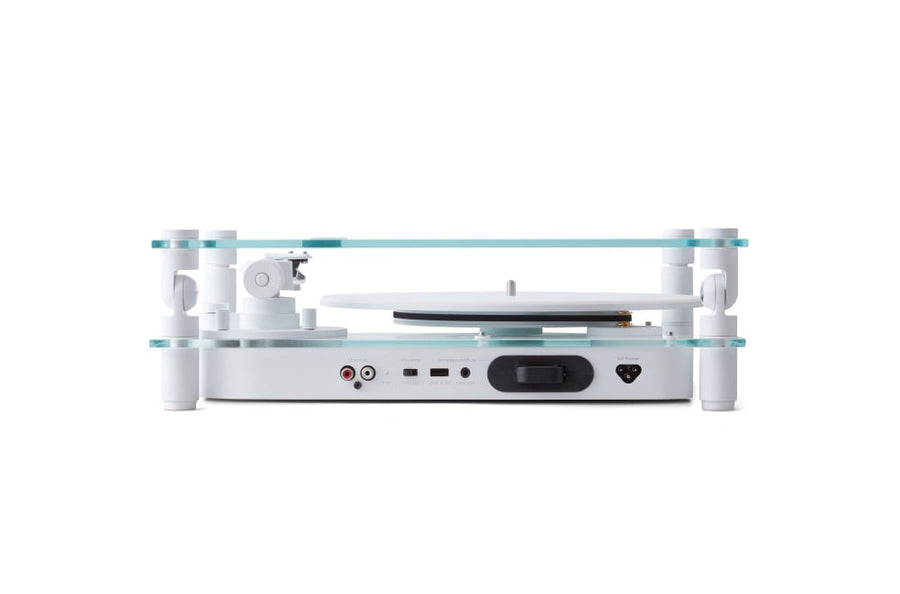

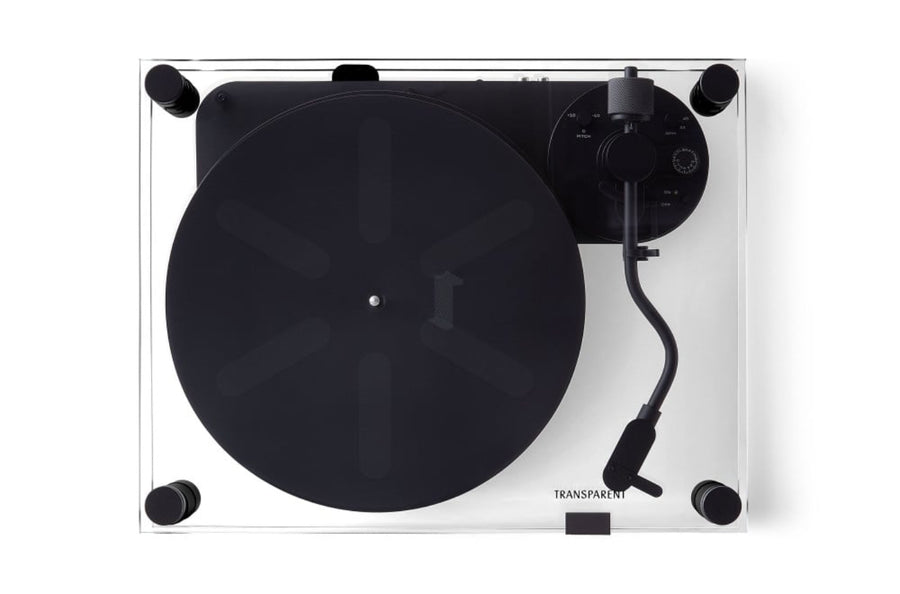

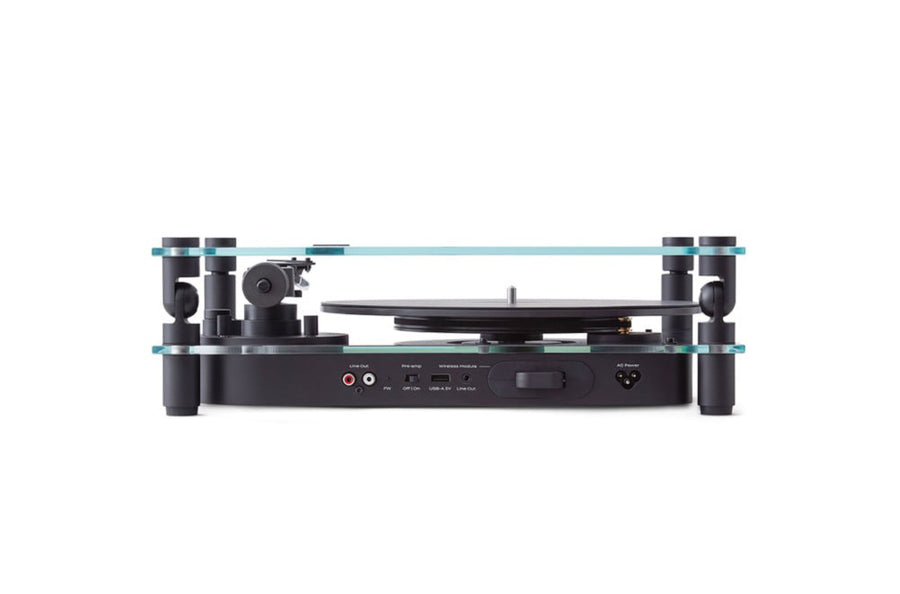

TRANSPARENT TURNTABLE

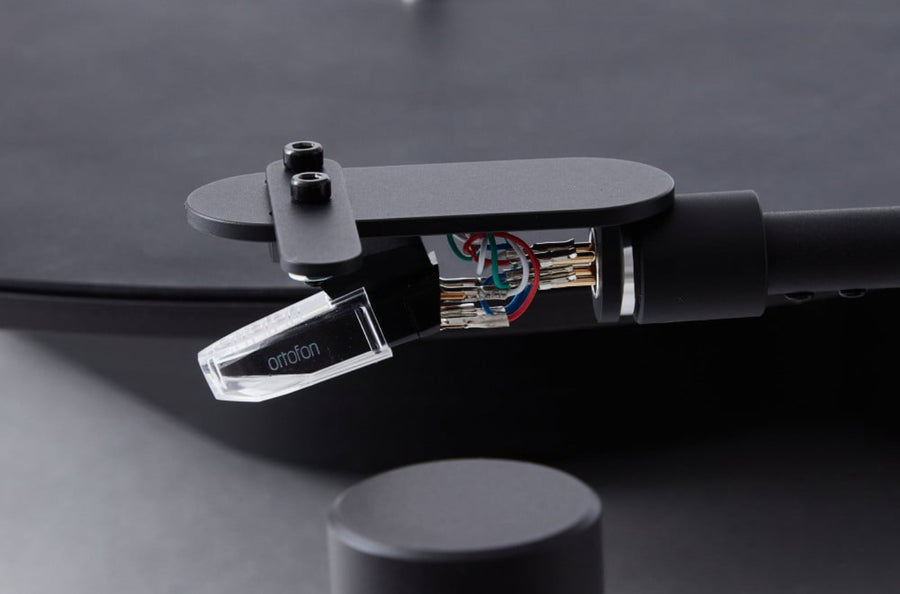

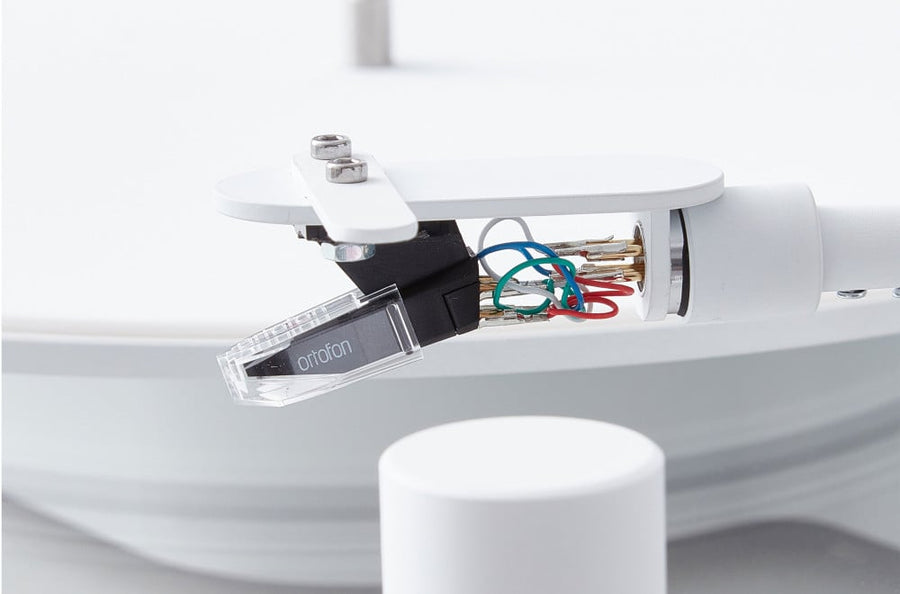

The Transparent Turntable is a reinvention of a classic vinyl record player, designed for a modern home and an ever evolving technology. The Transparent Turntable is meticulously crafted out of aluminium and tempered glass. It is a belt driven system with a built in phono stage, and a pre-mounted cartridge from Danish Ortofon.

Technical Specifications
Nominal speeds: 33 ⅓ and 45 RPM
Speed variance: 33: ±0.70% 45: ±0.60%
Wow and flutter: 33: ±0.25% 45: ±0.25%
Signal to noise: ≥ 70dB at 1kHz, 0dB A-weighted
Frequency range: 20-25.000Hz +3 / -3
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.5-2.0 g (15-20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Replacement stylus unit: Ortofon Stylus 5E
Effective tonearm mass: 13.5g
Effective tonearm length: 220mm / 8.7in
Overhang: 19.5mm / 0.77in
Max power consumption: 15W
Weight: 6,5kg / 14lb

DIMENSIONS:
(W x H x D): 410 x 125 x 320 mm / 16 x 5 x 13 in
